PD-10RD Longitudinal Hydraulic Drum Cutter

Description

POIN drum cutter was made with top world hydraulic technology. It has unrivaled advantages in doing mining, tunneling, profile correction, grooving in channel surface, asphalt concrete pavement milling, rock soil milling, etc.

POIN drum cutter family has 2 major members: horizontal drum cutter and vertical drum cutter.
Horizontal drum cutter is consisted of 2 modules, motor and rotary cutting drums, it starts cutting when the latter gets directly driven by the former. The structure of the horizontal drum cutter helps it cut at fast speed and production more efficiently.
The vertical drum cutter is consisted of 3 modules, motor, gearbox and cutting drum. The motor drives the gearbox and the gearbox drives the cutting drum. Such a structure enables the vertical drum cutter to cut with a bigger cutting force and reduces the risk of hydraulic oil leaking.

Currently, POIN company has developed below serial drum cutters (Suitable for 2.5-60 tons of excavators):

Comparison of parameters of various models

Model	Applicable Excavator(ton)	Max Output power(kw)	Max Flow(LPM)	Recommended Flow(LPM)	Max Pressure(Bar)	Output torque	Output shaft speed	Unit weight(Kg)	Number of Picks(Pieces)
PF-5RW	2.5 – 6	22	65	40	400	1875 Nm@300bar	100 RPM@40LPM	215	56
PF-10RW	8 – 16	29	112.5	60	400	3570 Nm@300bar	80 RPM@60LPM	381	56
PF-15RW	12 – 18	45	132	120	400	6320 Nm@320bar	95 RPM@120LPM	595	64
PF-20RW	18 – 30	90	320	220 – 320	450	17840 Nm@320bar	78 RPM@220LPM	1370	64
PF-30RW	25 – 40	110	460	320	450	21376 Nm@320bar	76 RPM@320LPM	1400	60
PF-40RW	35 – 60	140	550	450	450	33450 Nm@350bar	75 RPM@450LPM	1800	60
PD-5RD	2.5 – 6	25	85	40 – 70	205	2200 Nm@205bar	95 RPM@70LPM	210	28
PD-10RD	8 – 15	50	210	100 – 150	310	10272 Nm@320bar	80 RPM@120LPM	750	36
PD-20RD	18 – 30	80	265	110 – 170	380	14272 Nm@320bar	65 RPM@220LPM	750	42

Not limited to the above models, the products with special requirements can be customized.

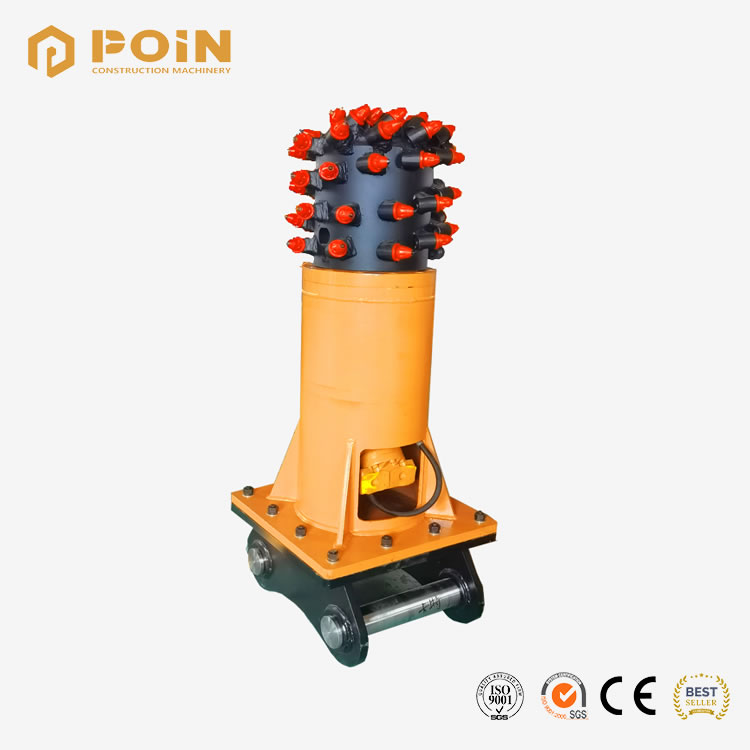

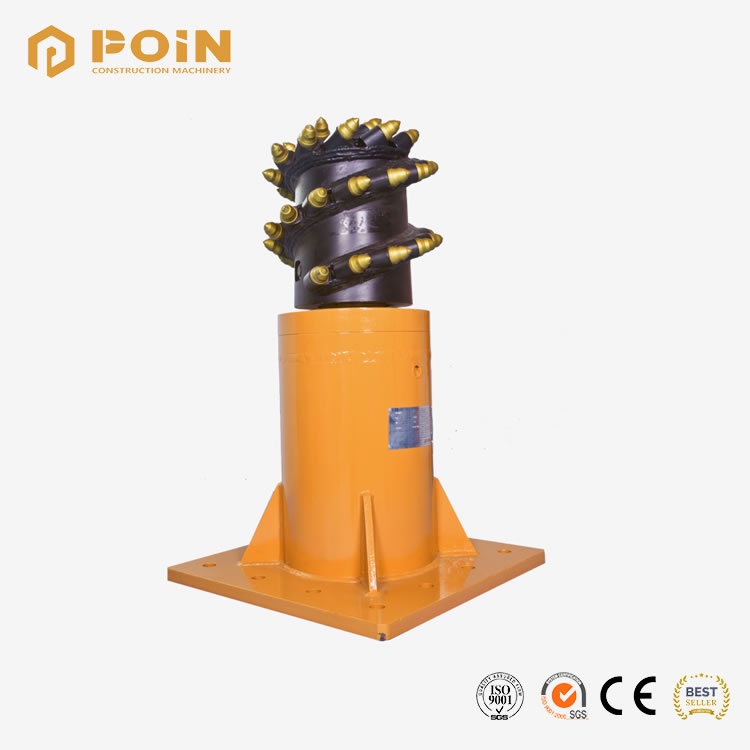

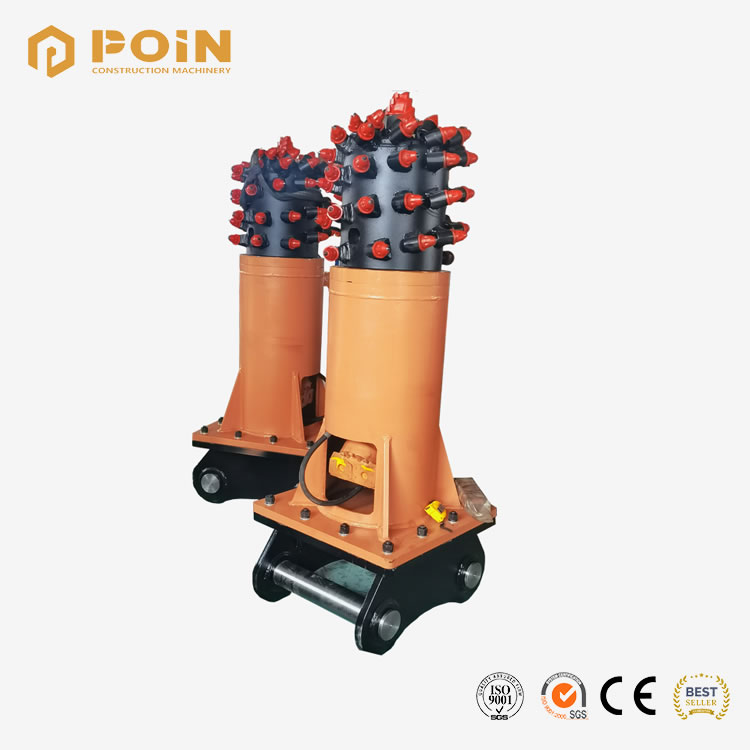

PD-10RD Longitudinal Hydraulic Drum Cutter

* Suitable Excavator: 8 – 15 tons
* Application: Concrete, sandstone, asphalt, coal mine, compact earth, limestone, mudstone.

Drum cutters can be widely used in tunnel, ditch, municipal pipeline excavation; Road surface crushing, mining, permafrost rock excavation, open-pit coal mine excavation, iron, steel, forestry industries, and other construction fields.
