Description

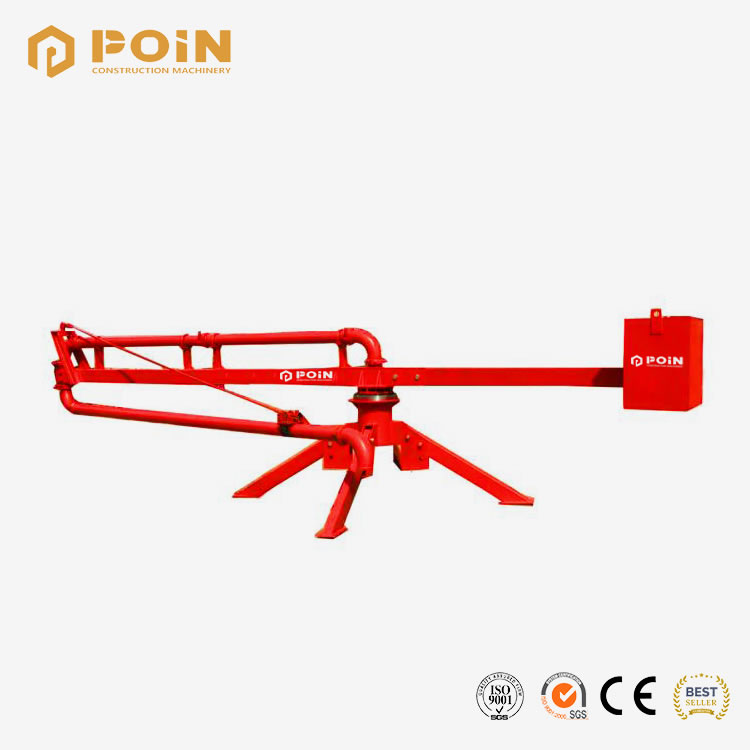

POIN Manual concrete placing boom is ideal for projects of high rise buildings, bridges and dams. Installed on the slewing supporting holder, the main beam frame can rotate 360°. Pipe supports on the front beam are used to fix and support delivery pipelines. The balancing frame on the rear beam is installed to achieve the balance.

Product Description

POIN is a professional manufacturer of concrete machinery and excavator attachments and accessories, with more than 20 years of production experience. POIN HG series concrete placing boom are designed from Putzmeister technology, through continuous upgrading and improvement, achieved perfect performance already.

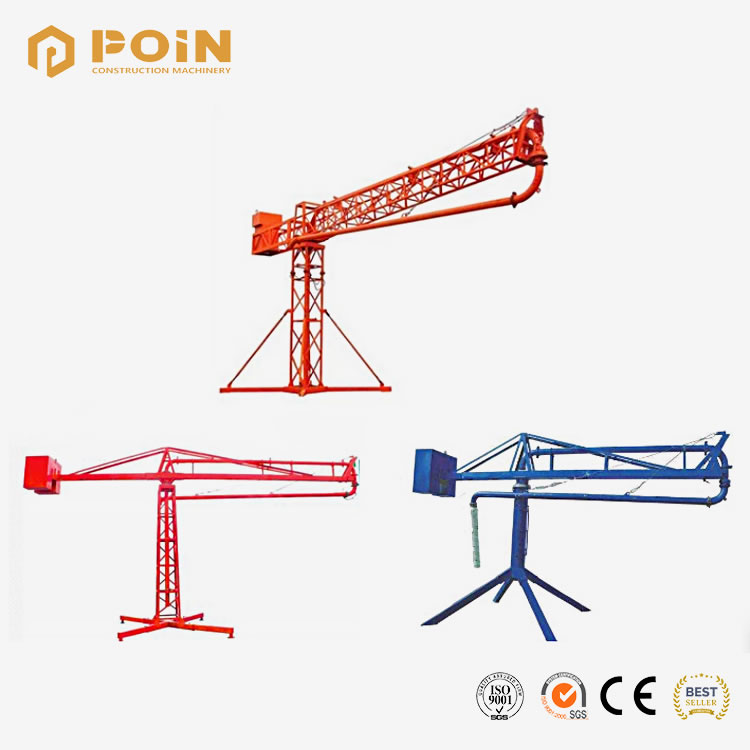

POIN Manual placing boom includes supporting steel pipes, pipe supports, pull bars, a beam, etc.

Installed on the slewing supporting holder, the main beam frame can rotate 360°. Pipe supports on the front beam are used to fix and support delivery pipelines. The balancing frame on the rear beam is installed to achieve the balance.The Manual Concrete Placing Boom series is structurally stable and reliable, operationally portable and flexible.

Advantages

Efficient, economical and easy to operate
1. Two arms design, manual operation and 360° rotation.;
2. Reduce the labor intensity and improve the construction quality.;
3. The machine can be conveniently moved to different sites owing to its small volume and light weight, and no needs concrete foundation.

Manual Placing Boom Parameters

Model	HGM10	HGM13
Performance	Max. Radius of Placing Boom(m)	10	13
	Free Placing Height (m)	0.6	0.6
	slewing range( º )	360°	360°
	working temperature(℃)	0〜60	0〜60
	Total Weight(kg)	1400	1650
	Counter Weight(kg)	800	1000
	Max. Height（mm）	1760	2100
	Max.Working Width （mm）	3153	3400
Hydraulic System	System Pressure (Mpa)
	Flow(L/min)
	Oil Tank capacity(L)
Arm	Boom Mode	Manual	Manual
	Delivery Pipeline Diameter	DN125mm	DN125mm
	Length of End Hose(″× m)	5″×3 (selected)	5″×3 (selected)
Transportation	The shipping container	20GP =3~5 units	20GP =3~5 units
Transportation	Trans. LWH (mm)	560010301760	680010302100

Application

The Manual placing booms are suitable for those situations in which the work of fixed placing boom and pumps are limited, such as:

1. When the concrete pump cannot completely place concrete on the large areas or construction sites.
2. When use hydraulic climbing placing boom takes too much time and energy to place concrete for the floor and columns.
3. For the project of production the precast units in a specially requested design.
