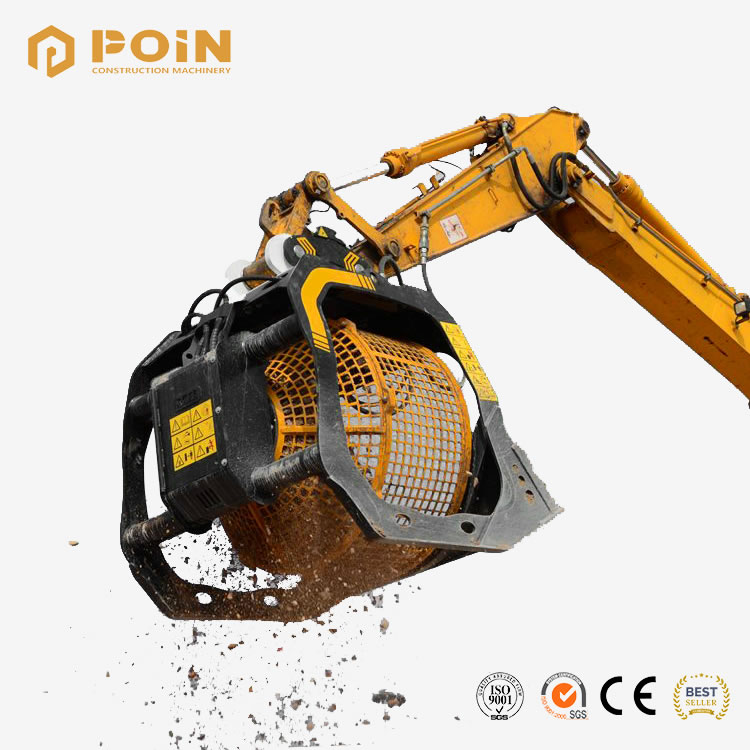

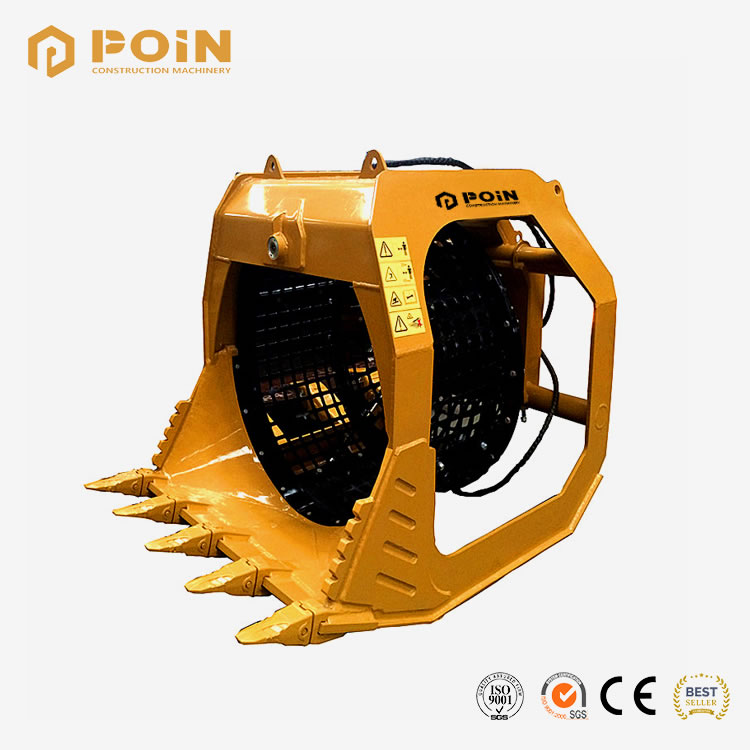

Excavator Rotating Screening Bucket

Description

Designed in Italy and manufactured in China, POIN rotary screening buckets connect quickly and easily with your excavator or loader. They’re solid, durable to resist wear and high stresses in the toughest working conditions. The buckets are constructed entirely from SSAB HARDOX and STRENX materials, feature full floating planetary drive systems and a variable speed high torque motor with cushion stop.

Products description

POIN Rotating Screening Bucket is unique. innovative conical shaped basket has a high radial and axial load basket support system and interchangeable modular Hardox wear plate or high carbon steel mesh screening panels.

As the name tells, this type of bucket combines screening (which refers to the grids inside) and rotating (due to the drum-shaped).

The build quality is extraordinary, the support from POIN Attachments is simply outstanding and the numerous ways in which these buckets will improve the proficiency of your excavator is mind-boggling. We can see a POIN rotary screening bucket being perfect as your primary screening attachment for scrap material, demolition material, filling material for excavations and material resulting from the reclamation of rocky soil.
They would be great for cleaning beaches, the selection of pebbles in waterways and fantastic for soil reclamation processes.

Applied Size: Due to the high technical characteristic, this bucket suits comparatively larger sizes.

Characteristic

1. The space of grids could be adjusted into 10*10mm for minimum and 30*150mm for maximum.
2. The screening drum design, featured with rotary, allows the bucket to rotate at high speed so as to sieve the unnecessary substances outside.

Parameters

Item	Unit	PRB04	PRB06	PRB08	PRB10	PRB17
Screen cylinder diameter	mm	700	900	1100	1500	1700
Working pressure	bar	130	170	170	170	170
Working flow	L/min	20	75	120	120	120
Capacity	m³	0.4	0.8	1.2	1.6	2.4
Weight	kg	430	920	1700	2200	3300
Applicable excavator	ton	5-9	10-17	18-25	20-35	30-40

BRAND	MODELS
CASE	CX130, CX130B, CX135SR, CX17B, CX160B, CX210B, CX225SR, CX240B, CX27B, CX290B, CX31B, CX330B, CX350B, CX36B, CX460, CX50B, CX75SR, CX80, 9050B, CX31B, C, 36B, CX25, CX31, CX36
HITACHI	EX27, EX35, EX100, EX120, EX130, EX135, EX200, EX210, EX220, EX230, EX300, EX370, EX400, EX550, EX55UR-3, EX58, EX60-1, EX700, EX750, EX75, EX80U, EX90, ZX110, ZX120, ZX135US, ZX140W-3, ZX160, ZX17U-2, ZX180LC-3, ZX200, ZX210, ZX225, ZX230, ZX240LC-3, ZX250LC-3, ZX270, ZX30-U2, ZX330, ZX35U, ZX40U, ZX400-3, ZX450-3, ZX50-2, ZX50U-2, ZX60, ZX600, ZX650-3, ZX60USB-3F, ZX70, ZX70-3, ZX75US, ZX80, ZX80LCK, ZX800, ZX850-3
JCB	2CX, 3C, 3CX, 4CX, 8018, JCB8040
JOHN DEERE	JD120, JD160, JD200, JD240, JD270, JD315SJ, JD330
KOMATSU	PC10, PC100, PC110R, PC120, PC1250, PC130, PC135, PC138, PC150-5, PC160, PC200, PC220, PC228US, PC270, PC300, PC360, PC400, PC450, PC550, PC650, PC1000, PC1200
KUBOTA	KU45, KX-O40, KX080-3, KX101, KX121, KX151, KX161, KX41, KX61, KX71-2, KX91, KX61-2S, KX91-3S
CATERPILLAR	302.5C, 303, 304, 305, 307, 308, 311, 312, 314, 315, 320, 322, 324DL, 325, 328D, 329D, 330, 330B, 330C, 330D, 330E, 330GL, 336D, 345, 345CL, 345F, 350, 416, 420, 428
DAEWOO	S015, S035, S130, S140, S175, S180, S210, S220, S225, S280, S290, S300, S320, S330, S340LC-V, S35, S370LC-, S400
DOOSAN	DX27, DX35, DX140, DX140W, DX180LC, DX225LC, DX255LC, DX300, DX340LC, DX420LC, DX480LC, DX520LC, DX55/60R, DX80
HYUNDAI	R110-7, R120W, R130, R140, R145, R15, R16, R160, R170, R180, R200, R210, R220LC, R235, R250, R280R290, R320, R35, R350, R360, R380, R420, R450LC, R480LC-9, R500, R520, R55, R60CR-9, R75-5, R80
KOBELCO	SK025, SK027, SK030, SK032, SK035, SK040, SK045, SK050, SK070, SK075, SK100, SK120, SK125, SK135, SK140, SK170, SK200, SK210, SK220, SK225SR-2, SK235SRLC, SK250, SK300, SK30, SK320, SK330, SK350, SK400, SK480
LIEBHERR	922,924
SAMSUNG	SE130LC, SE200, SE210LC, SE280LC, SE350LC
SUMITOMO	SH120, SH125X-3, SH135X, SH160-5, SH200, SH210, SH220, SH225, SH240, SH300, SH450
VOLVO	EC140, EC145C, EC160, EC180C, EC210, EC240, EC290, EC330, EC360, EC460, EC55, EC88, ECR58, ECR88, EW130, EW170, MX135WS/LS, MX175WS, MX225LS, MX255LS, MX295LS, MX365LS, MX455LS, MX55/W, SE130LC-3, SE130W-3, SE170W-3, SE210LC-3, SE240LC-3, SE280LC-3, SE360LC-3, SE460LC-3, SE50-3, EC700C
YUCHAI	YC15, YC18-2, YC18-3, YC25-2, YC30-2, YC35, YC45-7, YC55, YC60-7, YC65-2, YC85, YC135

Ordering instructions: POIN provides high-quality and cost-effective excavator buckets customization services according to the different needs of customers. The products are perfectly adapted to the excavators of Caterpillar, Komatsu, Volvo, Doosan, Sany, Zoomlion and so on. Please be sure to contact sales of POIN before ordering， confirming the excavator brand, key dimensions, color, etc. POIN can also meet the customer’s needs of completely customized production, but the customer needs to provide detailed parameter and information.

Our vision: Keep Improving, Keep win-win!

Advantages of POIN attachments

Application

Generally, it’s for sifting, so it could be applied in these fields – (including but not limited to) channel and waterways – basically it’s for all environment that requires primary screening, top-soil, quarried stone, remediation of contaminated soils & beaches, demolition waste, and green recycling duties. The SC series is just at a home clearing on a demolition site or in the quarry cleaning and sizing stone.
