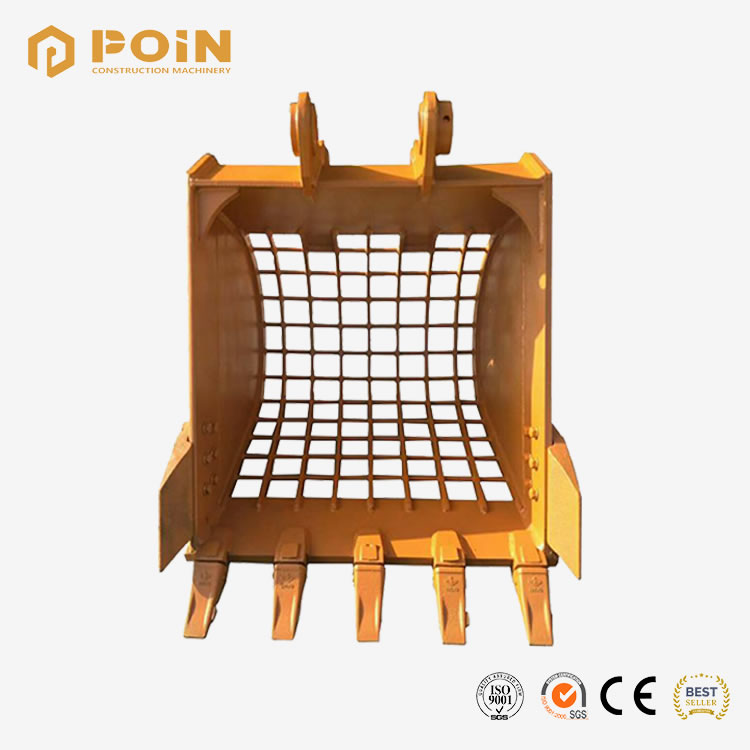

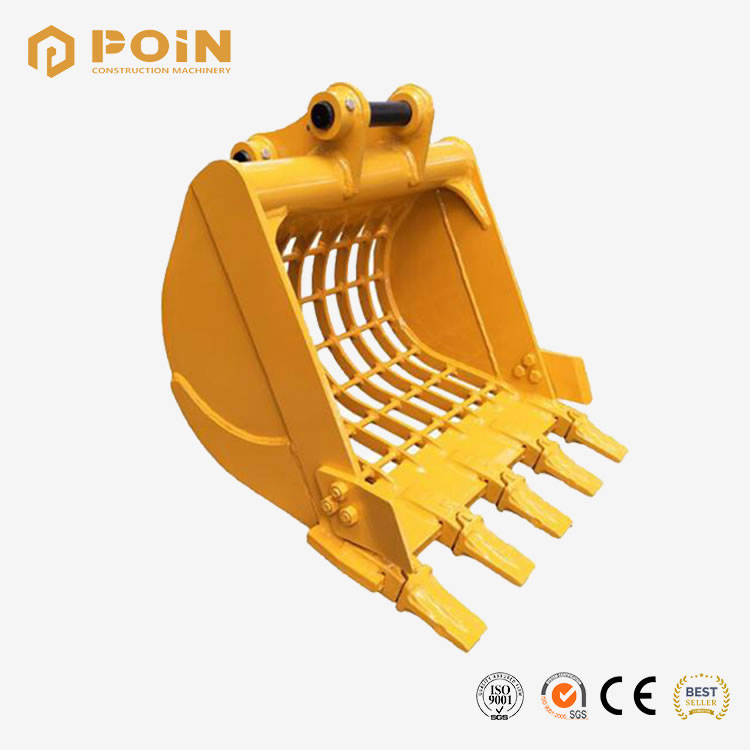

Excavator/loader Skeleton Bucket

Description

POIN skeleton buckets can separate rocks and debris from loose material easily , no matter what the conditions are. You can customize the width, tine spacing, and type of teeth that perfectly suits your application. And whether you’re cleaning up a jobsite, your field, or anything in between, the high-strength abrasion-resistant steel reinforcement makes these buckets always ready for the job.

Advantages

Bucket made for a primary selection of materials of various kinds, for reclamation and cleaning of land and for a pre-selection of the resulting material from a demolition. The “gaps” of the bars is determined according to the size of the required product.

All the bars are individually welded and fixed together with longitudinal round segments to ensure solidity of the structure.

POIN has two types skeleton buckets: With teeth, With double cutting edge.

A. Reinforced balls — wear-resisting.
B. Tough adaptor.
C. Bar is tightly glued to the inner wall and strong welding.
D. Cutting edge.
E. Use the wider bar to cross the steel pipe.
F. Reinforced plate.
G. Replaceable double cutting edge.

Parameters

Model	Carrier Size	Width(mm)	Capacity(m3)	Weight(kgs)
PSB-05	1-4t	1000	0.1	72
PSB-10	2-6t	1000	0.2	125
		1200	0.24	172
		1500	0.3	263
PSB-20	7-11t	1500	0.45	360
		1750	0.6	410
PSB-30	12-15t	1800	0.8	539
PSB-40	16-19t	2000	1	610
PSB-50	20-26t	2000	1.2	1065
PSB-60	27-40t	2400	1.6	1400

Ordering instructions: POIN provides high-quality and cost-effective excavator buckets customization services according to the different needs of customers. The products are perfectly adapted to the excavators of Caterpillar, Komatsu, Volvo, Doosan, Sany, Zoomlion and so on. Please be sure to contact sales of POIN before ordering， confirming the excavator brand, key dimensions, color, etc. POIN can also meet the customer’s needs of completely customized production, but the customer needs to provide detailed parameter and information.

Our vision: Keep Improving, Keep win-win!
