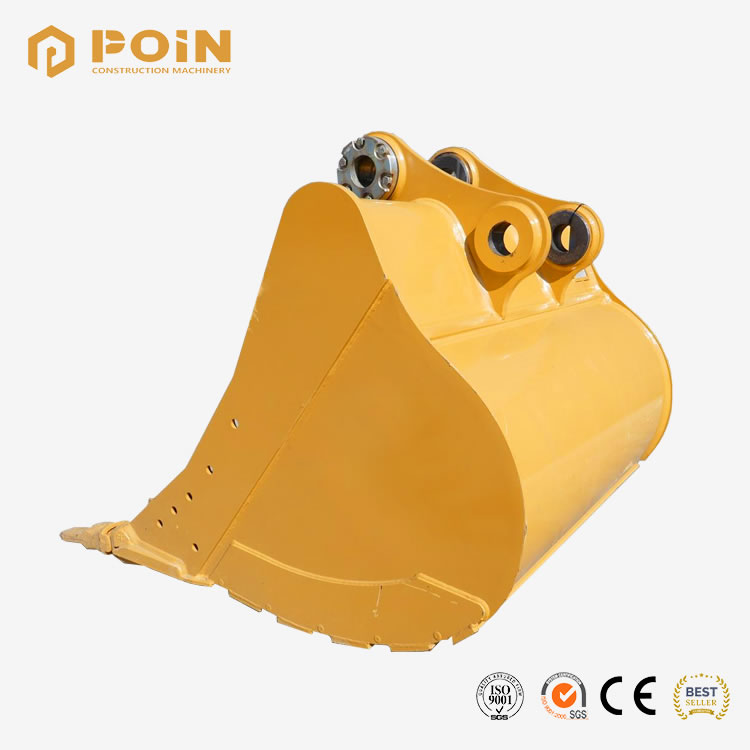

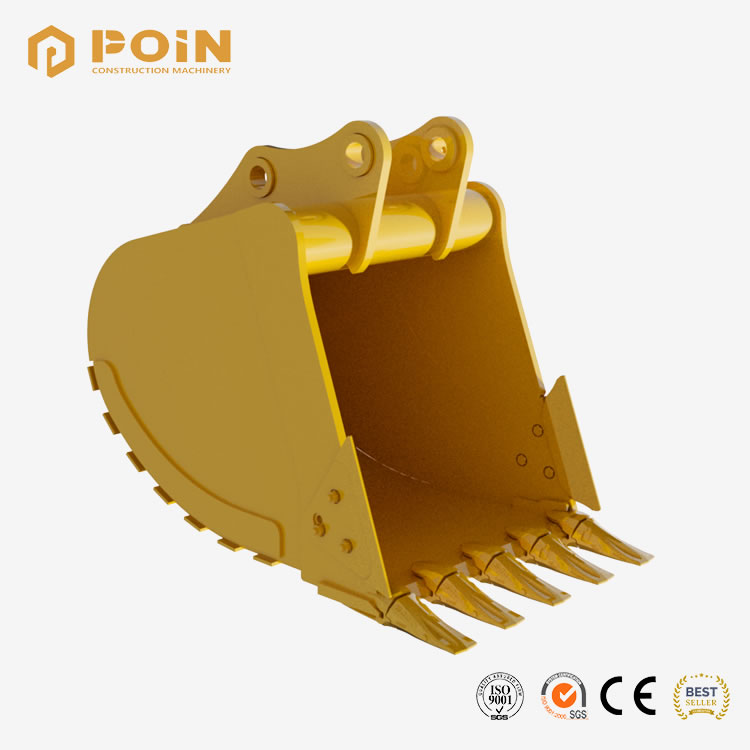

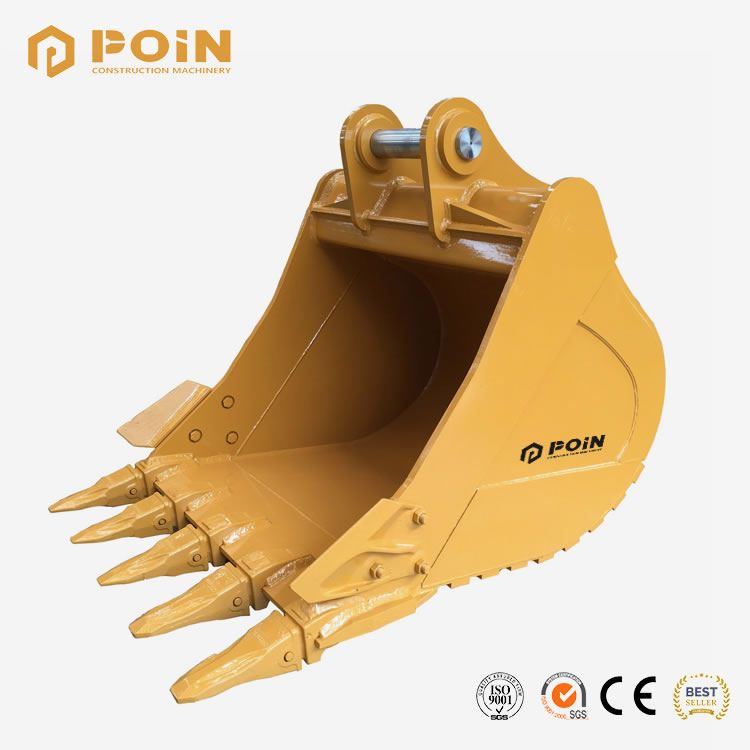

Excavator Heavy Duty Rock Bucket

Description

POIN Heavy Duty Bucket attachment uses international standard wear-resistant plates to manufacture tooth plates, side plates, and reinforcement plates. The bucket has strong wear resistance and bending resistance. The quality of the tooth, guard plates, and adapters is the same as the original parts. It can also be used when digging gravel, quarries, mines and other similar environments.

Product features

POIN heavy rock bucket is equipped with the reinforced line, reinforced plate, reinforced ball, heel shrouds, etc. POIN heavy rock bucket can work perfectly in tough working condition such as mining, rocks, hard earth, etc.

Overall review

This is the finished heavy rock bucket for Excavator, the buyer is used in bad working conditions, so our R&D department design the strongest design for this buyer. this rock bucket is made from premium materials, our heavy rock bucket meets the highest standards in design, craftsmanship and sustainability.

POIN rock bucket is including the followings:

A: Heel shrouds — reinforced the structure and wear-resisting
B: Reinforced ball — wear-resisting
C: Wear-resisting cutting edge — it use NM400 or NM500 material
D: Adaptor
E: Lip protector — protect cutting edge, increase using life
F: Heavy rock teeth
G: Reinforced line and plate — high load rating and more stronger structure
H: Changeable double side cutter — reducing repair cost
I: Reinforced line — high load rating
J: Reinforced plates — wear-resisting

Parameters

Item	Material	Parts	Configuration &Capability	Fit Models
Standard/HD Bucket	Q345B	Adapter, Teeth, Side  cutter	Standard plate thickness like the original factory, domestic high quality tooth plate.	For 5-30T excavator.Such as CAT 307 312 320 ,R55, R210, EX120, EX200, PC200, PC220 etc.
Heavy duty Bucket	Q345B	Adapter,Teeth,Side cutter,protector	Thicker plate, domestic high quality tooth plate which can extend the using time	FOR 19-60T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250 350 460 EC210 240 290 360 700 etc.
	Q4600 + Q345B	Adapter,Teeth,Side cutter,protector	Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist grinding and bending
Rock Bucket	NM400 + Q345B	Adapter,Teeth,Side cutter,protector, wearing block	Consolidated plate on the bottom, enhance the thickness of side plate, and install protective board, so that it can resist grinding and bending efficiently.	FOR 20-100T excavator. Such as: CAT 320 325 330 345 PC200 220 300 350 450 600 800 1250 ZX 200 300 400 870 1200 SK200 210 250 350 460 EC210 240 290 360 700 etc.
Heavy duty Rock Bucket	HARDOX400 + Q345B	Adapter,Teeth,Side cutter,protector, wearing block	Add fixed plate on the bottom and side guard plates, install protection plates; the tooth adapters adopt rock-specific products, featuring strong wear resistance and bending resistance.

Ordering instructions: POIN provides high-quality and cost-effective excavator buckets customization services according to the different needs of customers. The products are perfectly adapted to the excavators of Caterpillar, Komatsu, Volvo, Doosan, Sany, Zoomlion and so on. Please be sure to contact sales of POIN before ordering， confirming the excavator brand, key dimensions, color, etc. POIN can also meet the customer’s needs of completely customized production, but the customer needs to provide detailed parameter and information.

Our vision: Keep Improving, Keep win-win!

Advantages of POIN attachements:
