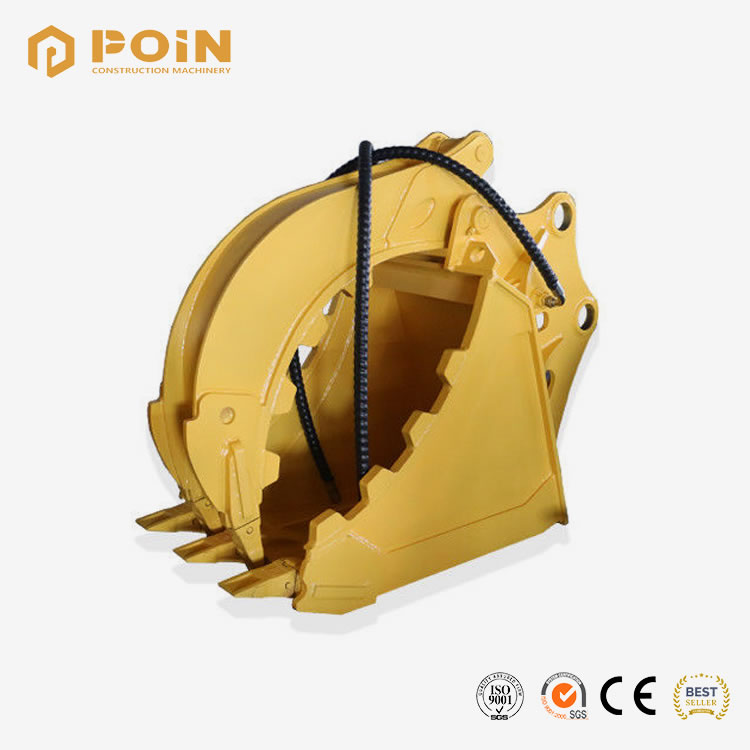

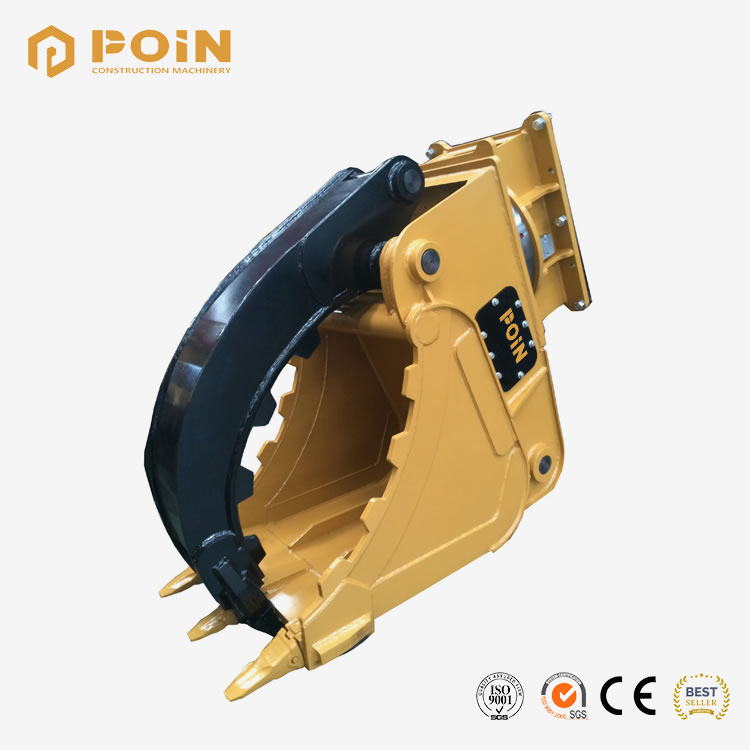

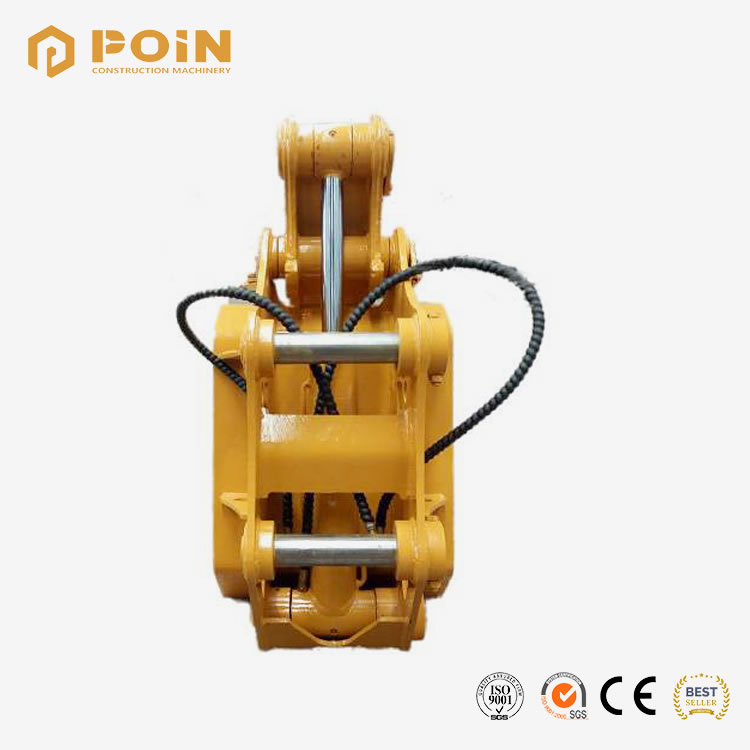

Excavator Grapple Bucket
- Machine Tons: 5 – 100t Excavator
- Color: Original color or as customer’s request
- Material: Q345B, NM400, Handox400/500 etc.
- Quality assurance
- Fast delivery
Description
POIN Grapple bucket is divided into 2 parts including a jaw connected to the main part to create opening and closing, making the bucket convenient in grabbing materials. It Suits 1 to 50 tons’ excavator. (Could be customized for larger tonnage). Characteristic: Connected with a hinge, the 2 parts could create a jaw-like function that makes sure that the materials could be held tightly and moved away in a most efficient and energy-saving way.
Product features
A: Removable teeth
Bucket teeth is easy to be damaged, our design will reduce the repair cost.
B: Wear parts
Our engineer design wear part in this place to extend its life
C.Integrated check valve
Ensuring the best grabbing capabilities and more safety
D. HD leading edges
Ensuring the durability of grabs and increasing the grabbing capabilities
E. High-quality hydraulic components
Ensure the grab bucket’s using life and make it’s more strong to reduce risk or damage or failure.
F. Hydraulic valve/lock
Prevent the oil slick when cylinder broke down—–more safety.
Parameter
| Model | PGB-01 | PGB-02 | PGB-03 | PGB-04 | PGB-05 | PGB-06 |
|---|---|---|---|---|---|---|
| Weight(kgs) | 165 | 310 | 390 | 740 | 940 | 1490 |
| Max Jaw opening (m/m) | 828 | 1200 | 1200 | 1600 | 2062 | 2062 |
| Oil pressure(kg/cm²) | 100-130 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 |
| Set up pressure(kg/cm²) | 150 | 170 | 180 | 190 | 200 | 210 |
| Operating flux(ipm) | 25-40 | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 |
| Cylinder volume(ton) | 4.0 | 5.4 | 5.4 | 8.2 | 10.0 | 12.0 |
| Apply excavator(ton) | 2-3 | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 |
Ordering instructions: POIN provides high-quality and cost-effective excavator buckets customization services according to the different needs of customers. The products are perfectly adapted to the excavators of Caterpillar, Komatsu, Volvo, Doosan, Sany, Zoomlion and so on. Please be sure to contact sales of POIN before ordering， confirming the excavator brand, key dimensions, color, etc. POIN can also meet the customer’s needs of completely customized production, but the customer needs to provide detailed parameter and information.
